You can enter the recommended duration for an operator to complete an instruction step under the “Time Study” functionality. This functionality allows you to standardize the time needed to complete a certain work instruction step.
After you’ve set up a time study on a work instruction step, you can check the actual time spent by an operator on that particular instruction step by seeing it on a work instruction recording. That way, you can see whether that operator complies with your recommended duration for that instruction step – or they spent too little/too much time.
This is a simple yet crucial feature. If an operator spends too little time on a particular instruction step, it might compromise the quality of their work. While if an operator spends too much time on a certain instruction step, it might delay your production process. That’s why it’s important to check the pace of every work instruction step using the Time Study feature.
Note: This feature only works on the Quality Management module, the Audits & Digital Checklists module, and the Skill Matrix & Trainings module. You can reach us through sales@azumuta.com to learn more
How to Set up a Time Study on a Work Instruction Step #
Here’s how to set up a time study on a work instruction step:
- Navigate to the work instruction step where you would like to have a time study.
- Click on “Open”.
- Click on “Time Study”.
- Insert the estimated time (in seconds).

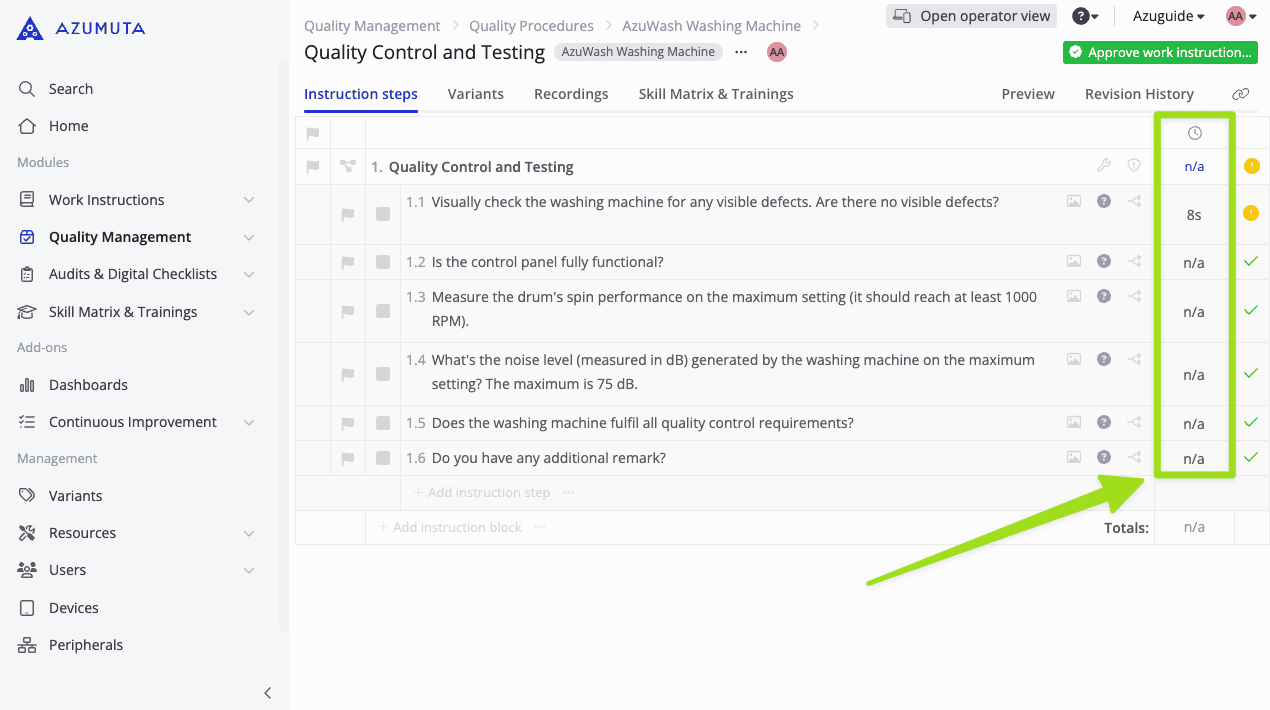

Alternatively, you can also add/edit the Time Study by adding/editing a number on the column under the clock icon, as shown below:
How to Access a Work Instruction Recording and See the Time Spent by an Operator on a Particular Instruction Step #
If the Work Instruction Was Made on the Quality Management Module #
If the work instruction was made on the quality management module, then you can check the recording on a product order. Here’s how to do it:
- Click on “Quality Management” on the homepage sidebar.
- Click on “Product orders”.
- Click on the product order that contains the recording that you would like to see.
- Click on “Report” next to the work instruction that contains the targeted instruction step.
- The recommended duration that you inputted can be seen under the “Estimated” column, while the actual time spent by an operator can be seen under the “Duration” column.
If the Work Instruction Was Made on the Audits & Digital Checklist Module #
If the work instruction was made on the Audits & Digital Checklist module, then you can check the recording on an audit event. Here’s how to do it:
- Click on “Audits & Digital Checklists” on the homepage sidebar.
- Click on “Planning”.
- Select the planning tab that contains the recording that you would like to see.
- Click on the audit event that contains the recording that you would like to see.
- Click on “Report”.
- The recommended duration that you inputted can be seen under the “Estimated” column, while the actual time spent by an operator can be seen under the “Duration” column.
If the Work Instruction Was Made on the Skill Matrix & Trainings Module #
If the work instruction was made on the Skill Matrix & Trainings module, then you can check the recording on a training event. Here’s how to do it:
- Click on “Skill Matrix & Trainings” on the homepage sidebar.
- Click on “Planning”.
- Select the planning tab that contains the recording that you would like to see.
- Click on the training event that contains the recording that you would like to see.
- Click on “Report”.
- The recommended duration that you inputted can be seen under the “Estimated” column, while the actual time spent by an operator can be seen under the “Duration” column.
How to Set Up a Timer on an Instruction Step #
To ensure consistency throughout your work instructions, you can use our timer feature on each instruction step.
This timer is used to standardize the time that an operator should spend when working on an instruction step. That way, an operator won’t spend too much or too little time when working on an instruction step.
In order to use this feature on an instruction step, you must:
- Activate the timer feature on the device where it will be used
- Fill in the time study on the targeted instruction step
We will show you how to do both actions in the guide sections below:

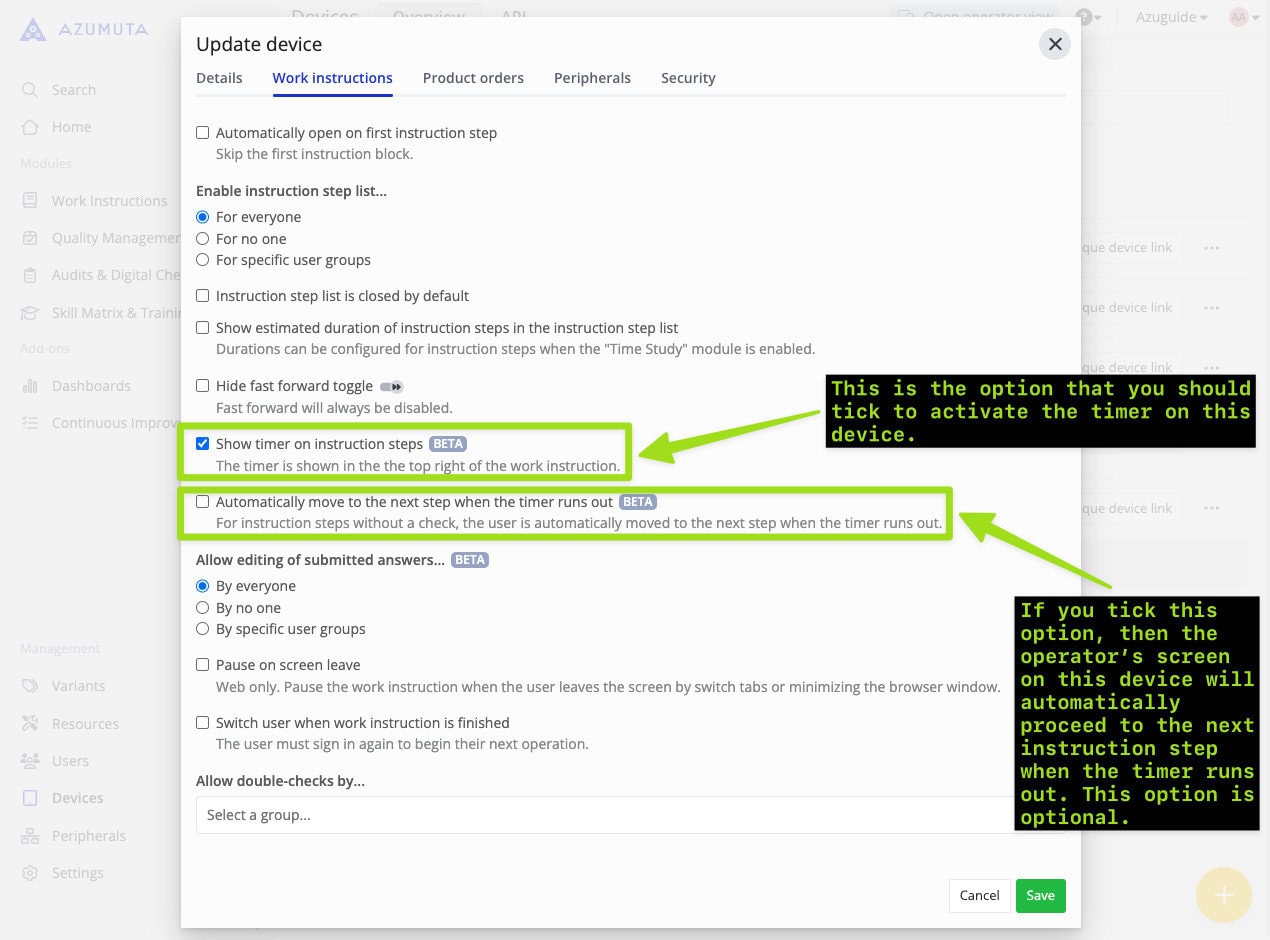

How to Activate the Timer on a Device #
- Click on “Devices” under “Management”.
- Next to the device that you would like to add a time into, click on the three-dot icon.
- Click on “Edit device”.
- Click on the “Work Instructions” tab.
- Tick on “Show timer on instruction steps”.
- Optional: If you want the operator’s screen on this device to automatically proceed to the next instruction step when the timer runs out, then tick on “Automatically move to the next step when the timer runs out” as well.
- When you’re done, click on “Save”.
How to Set Up the Time Study on an Instruction Step #
After you’ve activated the time study feature on the targeted device, the next thing that you need to do is set up the timer on an instruction step using the time study feature. Here’s how to do it:
- Navigate to the instruction step where you would like to set up a timer on.
- Click on “Open”.
- Click on “Time Study”.
- Insert the time that will be displayed in the timer (in seconds).

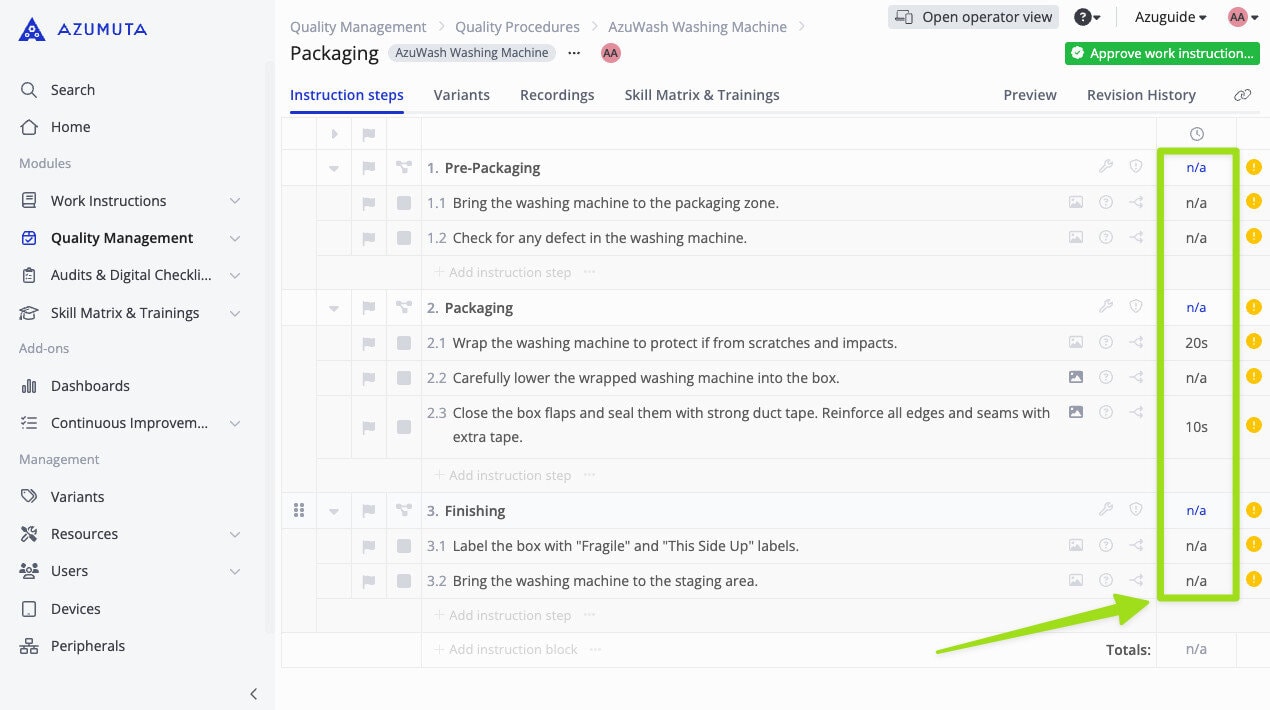

Alternatively, you can also add/edit the Time Study by adding/editing a number on the column under the clock icon, as shown below:
How the Timer Appears on an Instruction Step #

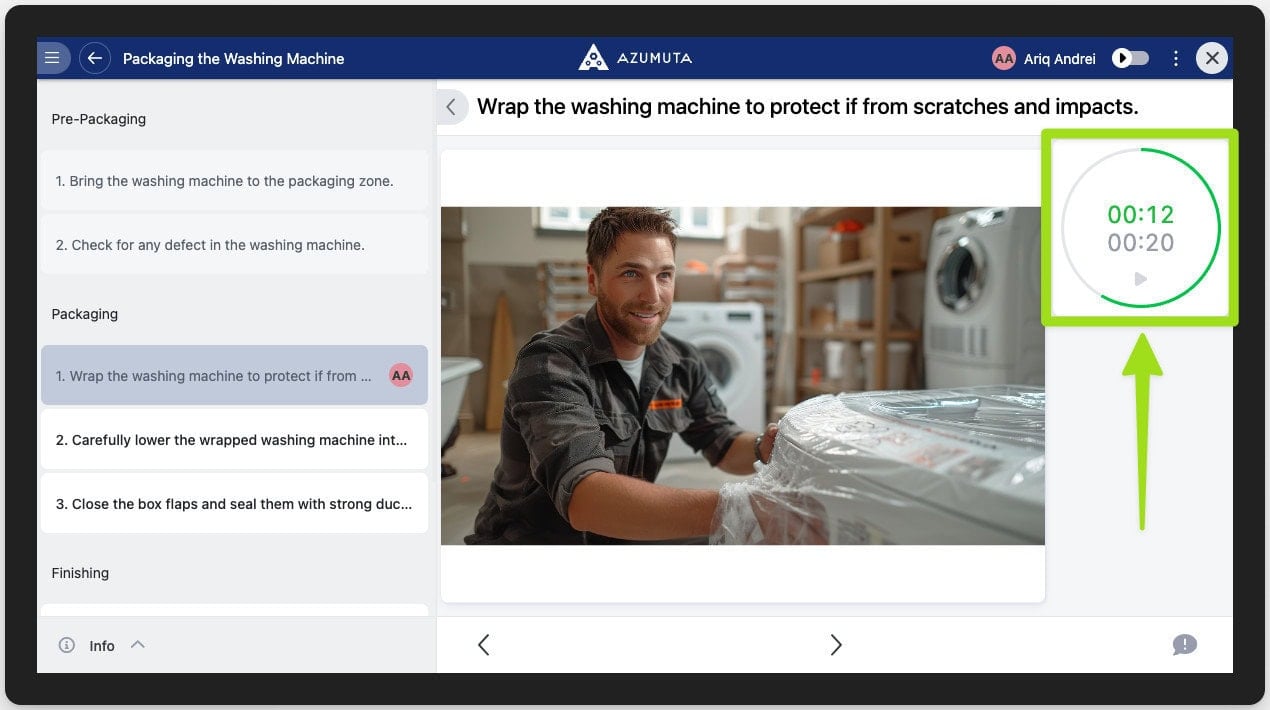

This is how the timer appears in an instruction step:
