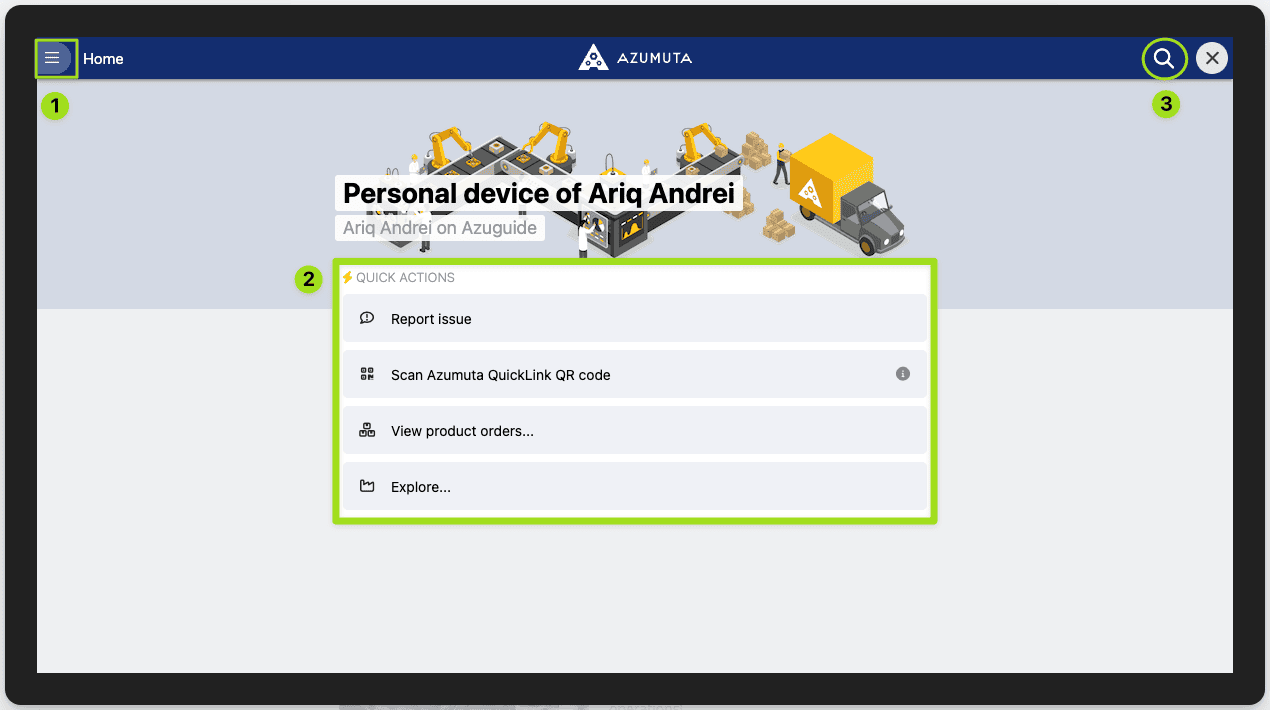

The Homepage Layout #
At Azumuta, we designed the app to be as sleek as possible – to ensure that operators can navigate through it swiftly. This design is perfectly reflected on the app’s homepage, which is composed of 3 main elements:

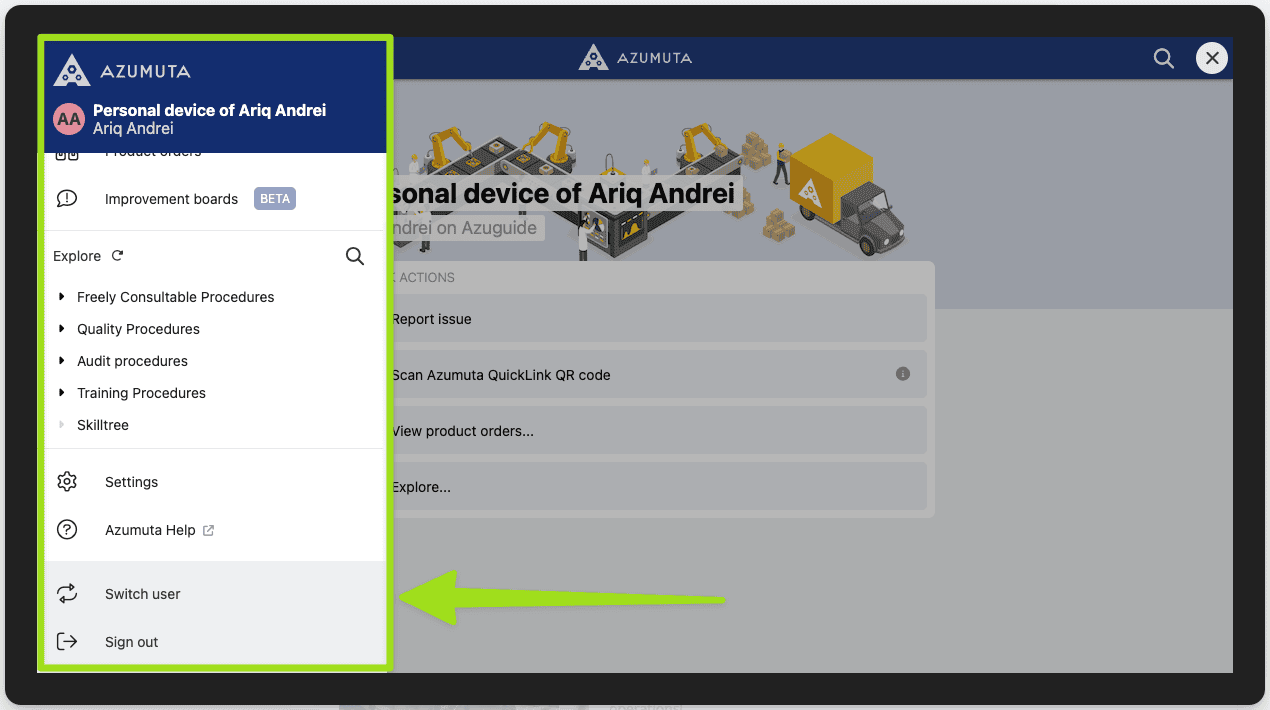

The Sidebar #
The sidebar is the main navigation tool on the app. When clicked, it will open a window that includes access to:
- The homepage
- The list of product orders
- The image gallery (the list of images & videos taken on that device)
- Improvement boards
- All of the modules
- Settings
- A shortcut to our knowledge base
- The switch user button
- The sign out button
Use the slider tool on the right side of the sidebar (not visible unless clicked on) to navigate upwards or downwards on the sidebar.
Quick Actions #
The Quick Actions section was made so that operators do the 4 most commonly taken actions on the shop floor:
- Reporting an issue using a ticket
- Scanning a QR code that will instantly lead to a work instruction
- Seeing the list of product orders
- Opening the sidebar

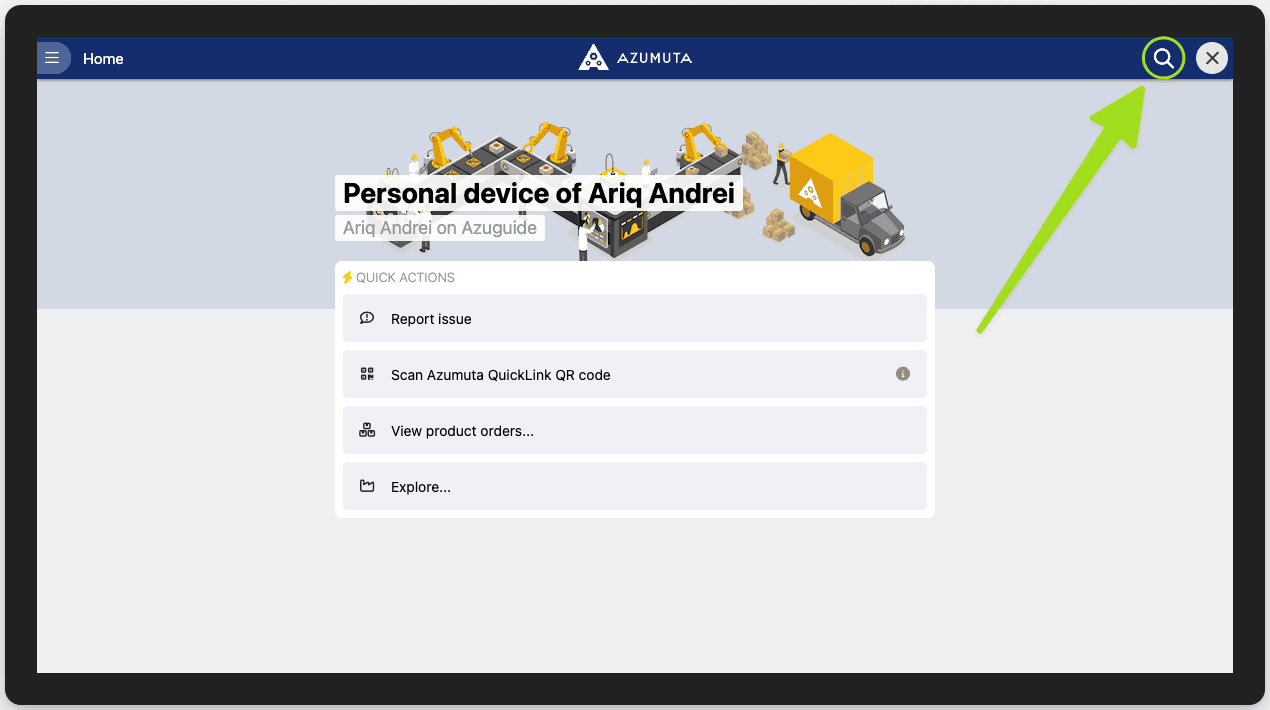

The Search Bar #
Using the search bar is the quickest way to locate anything in Azumuta, whether it’s work instructions, images, articles, or other items. Simply type in the name of the item that you’re looking for, and the search bar will display the matching search results.
