How to Configure a Peripheral Group or a Peripheral Device

After adding peripheral groups and peripheral devices to your Azumuta platform, you can configure them to suit your needs.



Here are the available configuration options:

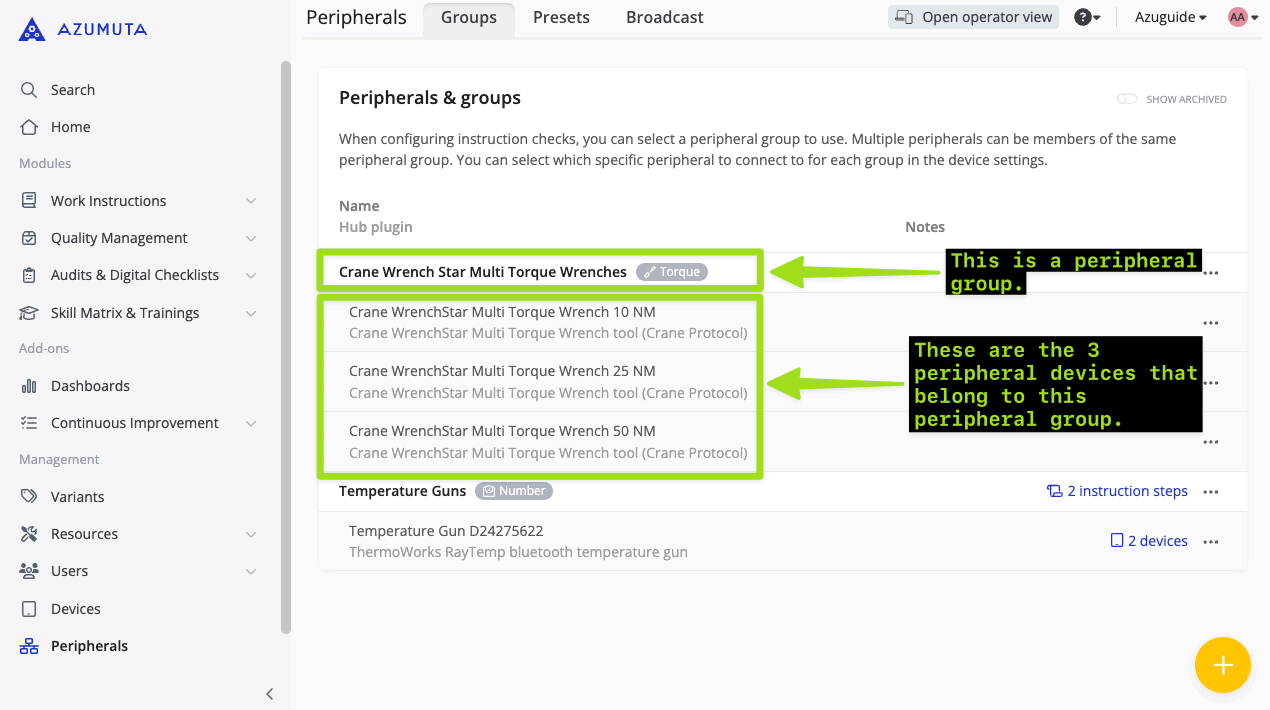

Peripheral Groups #

How to Edit a Peripheral Group #

1. Click on “Peripherals” under “Management”.
2. Click on the three-dot icon next to the peripheral group that you would like to edit.
3. Click on “Edit”.
4. After you’re done with your edits, click on “Save”.

The available editing options will differ based on the peripheral group type.



How to Add a Peripheral Device to a Peripheral Group #

1. Click on “Peripherals” under “Management”.
2. Click on the three-dot icon next to the targeted peripheral group.
3. Click on “Add peripheral”.
4. Fill in the available fields (only the “Name” field is obligatory).
5. When you’re done, click on “Add”.



How to See the List of Instruction Steps That Are Linked to a Peripheral Group #

1. Click on “Peripherals” under “Management”.
2. Click on “instruction steps” next to a peripheral group.
3. Scroll down, and you will see the list of instruction steps that are linked to that peripheral group under “Instruction steps”. You can also click on any of them, and you will be redirected to its instruction step editor afterward.



How to Archive a Peripheral Group #

Before you can archive a peripheral group, make sure that there are no peripheral devices that fall under this peripheral group.

1. Click on “Peripherals” under “Management”.
2. Click on the three-dot icon next to the peripheral group that you would like to archive.
3. Click on “Archive”.
4. Click on “Archive” again.



How to Unarchive a Peripheral Group #

1. Click on “Peripherals” under “Management”.
2. Click on “Show Archived”.
3. Click on the three-dot icon next to the archived peripheral group.
4. Click on “Unarchive”.



How to Delete a Peripheral Group #

1. Click on “Peripherals” under “Management”.
2. Click on the three-dot icon next to the peripheral group that you wish to delete.
3. Click on “Remove”.
4. Click on “Remove” again.



Peripheral Devices #

How to Edit a Peripheral Device #

1. Click on “Peripherals” under “Management”.
2. Click on the three-dot icon next to the peripheral device that you would like to edit.
3. Click on “Edit”.
4. After you’re done with your edits, click on “Save”.

The available editing options will differ based on the peripheral device type.



How to See the List of Devices That Are Linked to a Peripheral Device #

1. Click on “Peripherals” under “Management”.
2. Click on “devices” next to a peripheral device.
3. There, you will see the list of devices that are linked to that peripheral device. If you click on any of the devices, you will be redirected to the device management menu.



How to Archive a Peripheral Device #

1. Click on “Peripherals” under “Management”.
2. Click on the three-dot icon next to the peripheral device that you would like to archive.
3. Click on “Archive”.
4. Click on “Archive” again.



How to Unarchive a Peripheral Device #

1. Click on “Peripherals” under “Management”.
2. Click on “Show Archived”.
3. Click on the three-dot icon next to the archived peripheral device.
4. Click on “Unarchive”.



How to Delete a Peripheral Device #

1. Click on “Peripherals” under “Management”.
2. Click on the three-dot icon next to the peripheral device that you wish to delete.
3. Click on “Remove”.
4. Click on “Remove” again.
